Project Brief
A habitat center is a mixed use facility, acting as a convention center, an office complex and a hotel all rolled into one site. This typology was originally formed by Ar. Joseph A.Stein and the only complex present is the Indian Habitat Center in Delhi, India. Like minded individuals come together to discuss matters of relevance to the habitat, the MP State Habitat Center acts as one such center designed for the same purpose. Located in Bhopal, in central India, the complex aims to be a midpoint for the country’s activities.
| Revit | Photoshop | Illustrator | Rhino | Grasshoppper |
1. Tatya Tope Stadium, Bhopal

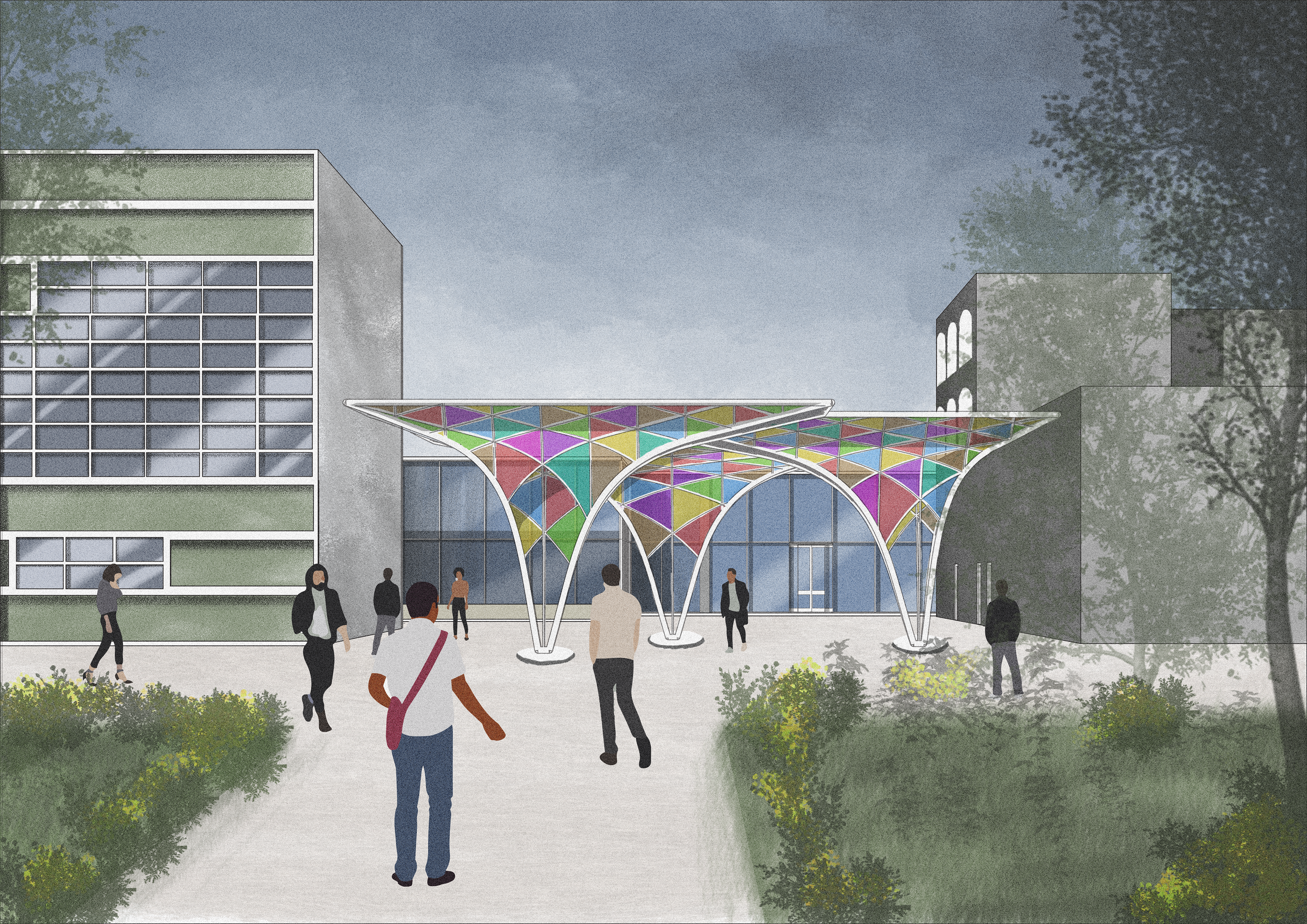

2. Main Entrance
3. Secondary Entrance
4. Parking
5. Entrance Foyer
6. Hotel
7. Club and Cafe
8. Auditorium
9. Office Building
10. Banquet Hall
11. Lawn
2. Main Entrance
3. Secondary Entrance
4. Parking
5. Entrance Foyer
6. Hotel
7. Club and Cafe
8. Auditorium
9. Office Building
10. Banquet Hall
11. Lawn

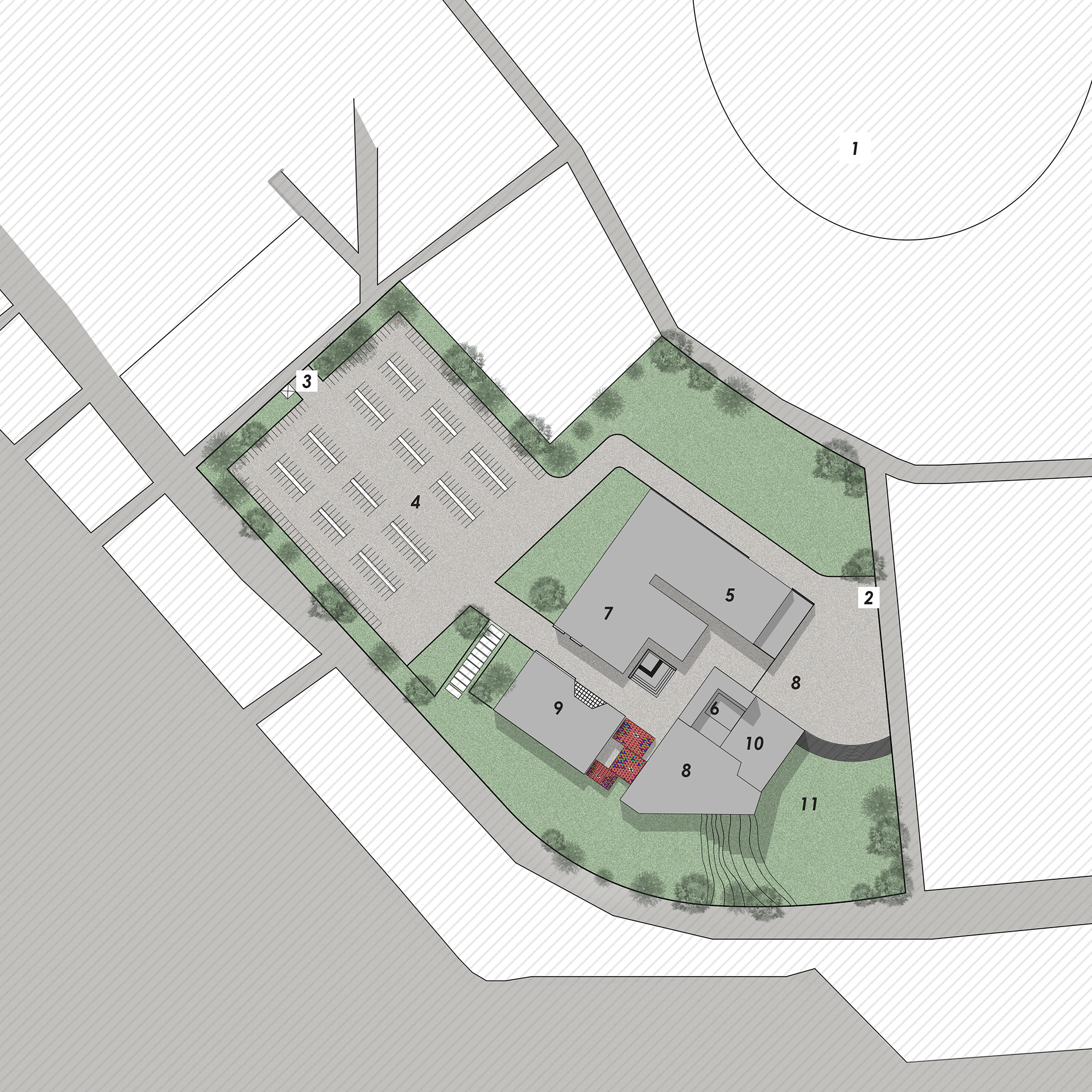

SITE PLAN (not to scale)

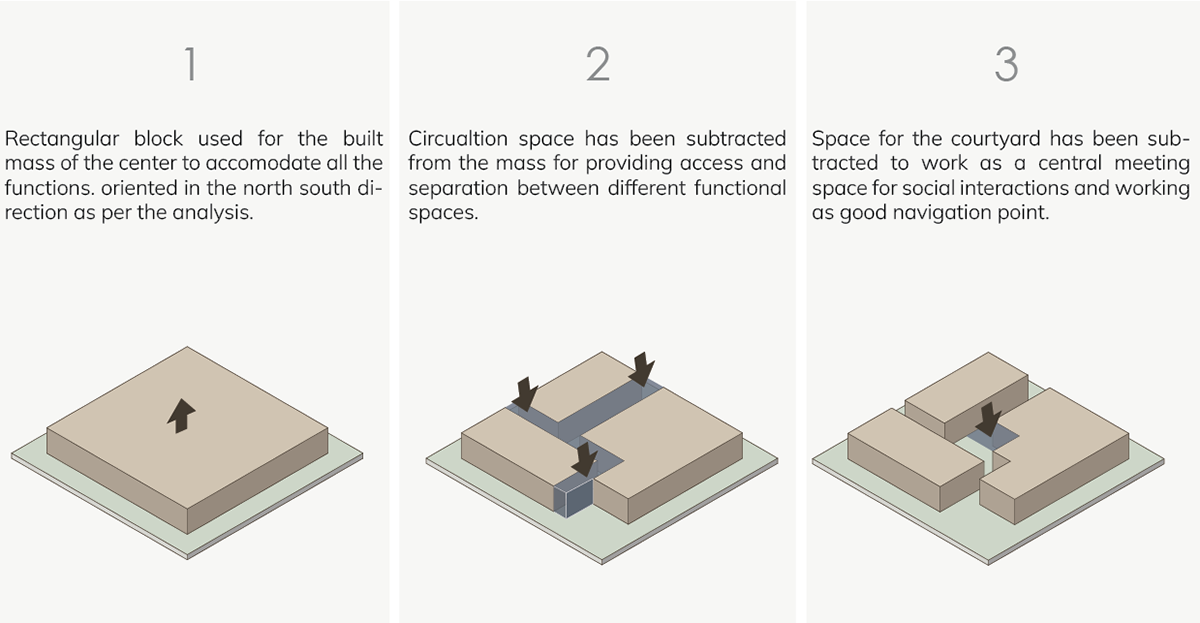

FORM DEVELOPMENT

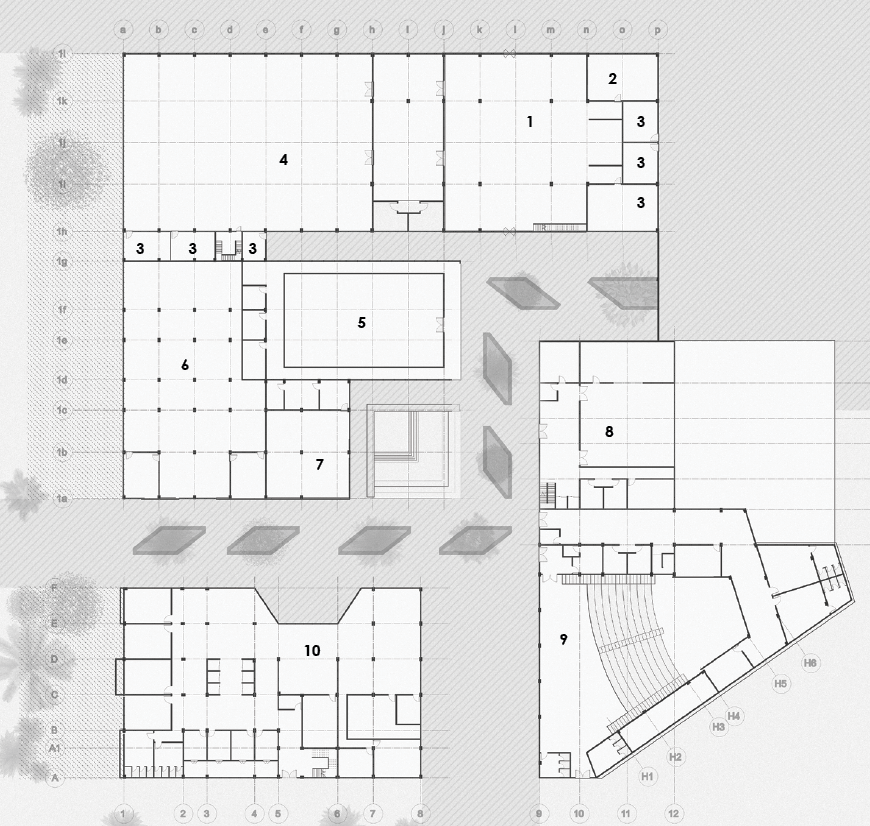

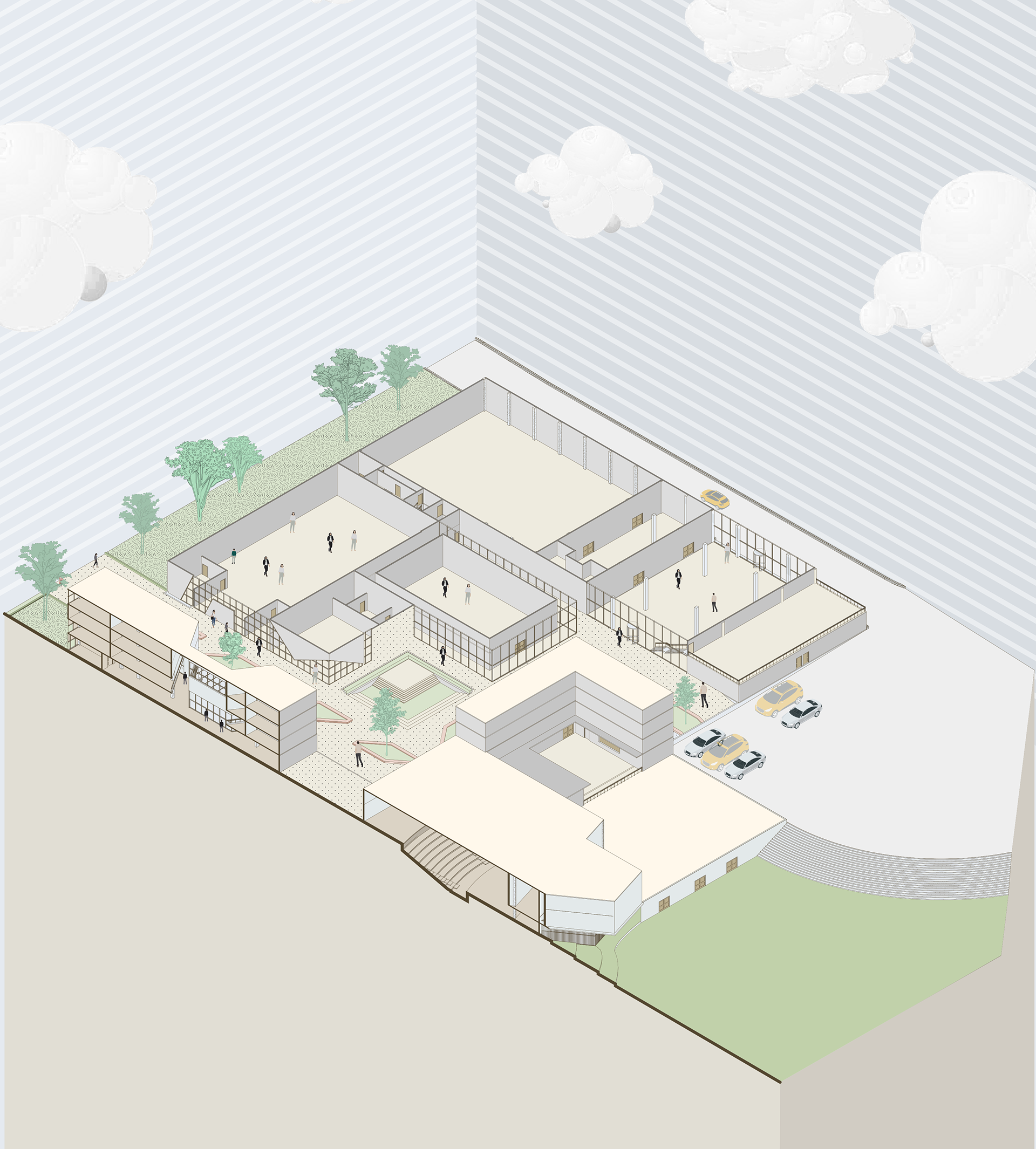

GROUND FLOOR PLAN
1. Entrance Lobby
2. Cafe
3. Services
4. Seminar Hall
5. Exhibition Hall
6. Club House
7. Resturant
8. Hotel and Banquet Hall
9. Auditorium
10. Office Block
2. Cafe
3. Services
4. Seminar Hall
5. Exhibition Hall
6. Club House
7. Resturant
8. Hotel and Banquet Hall
9. Auditorium
10. Office Block

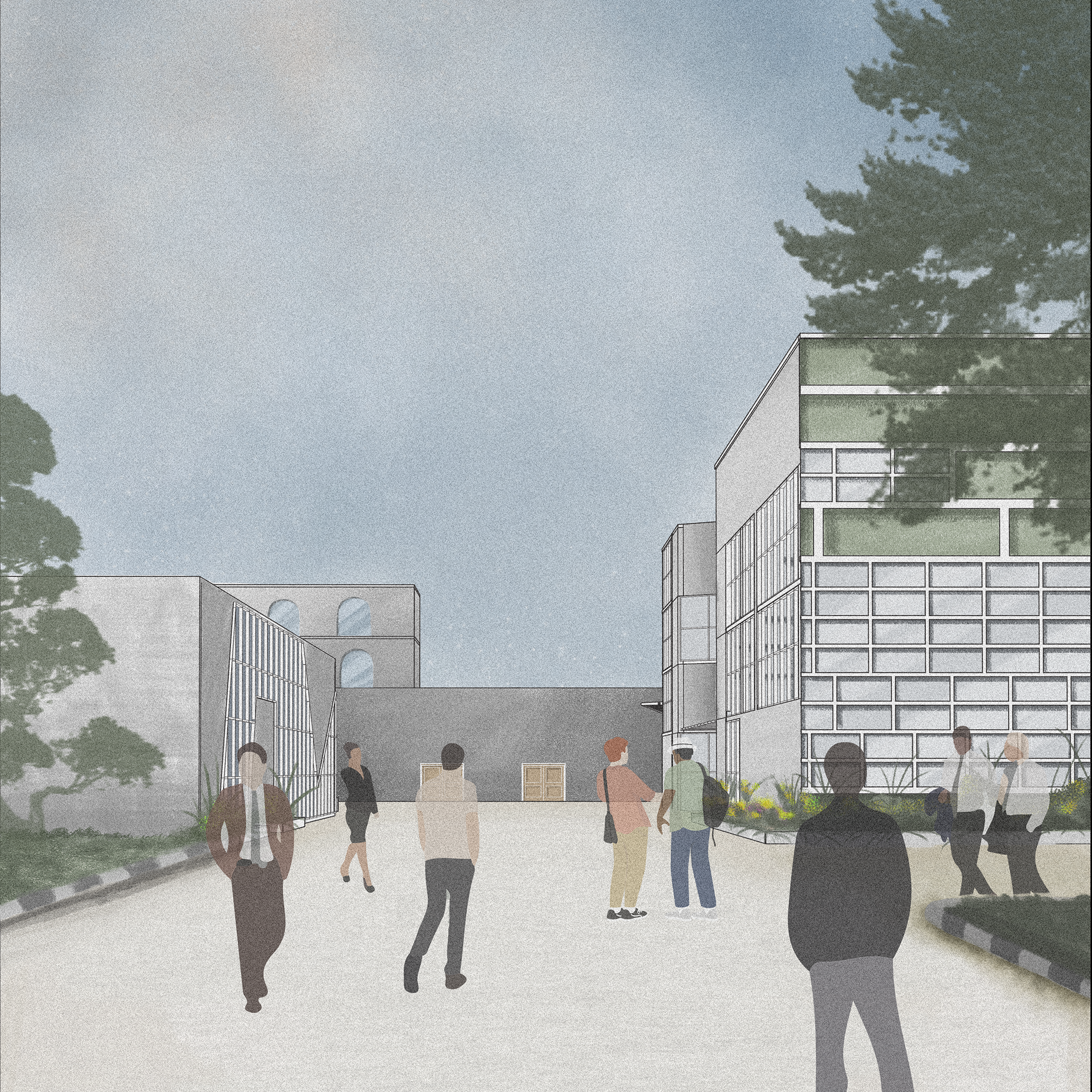

FRONT ELEVATION
TYPICAL BLOCK PLANS

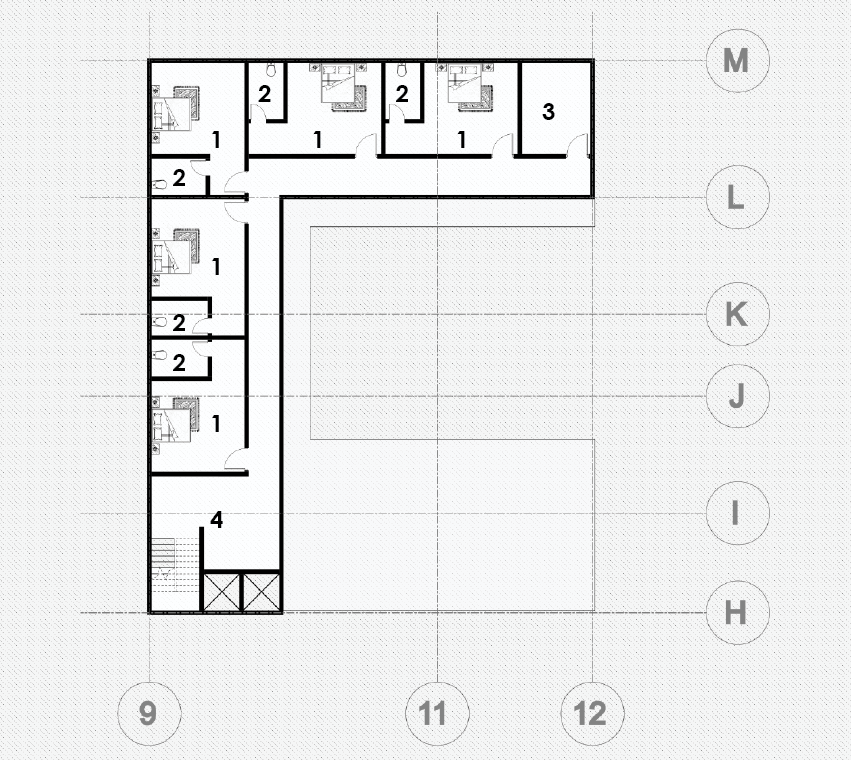

1. Bedroom
2. Toilet
3. Service room
4. Vertical circulation
2. Toilet
3. Service room
4. Vertical circulation

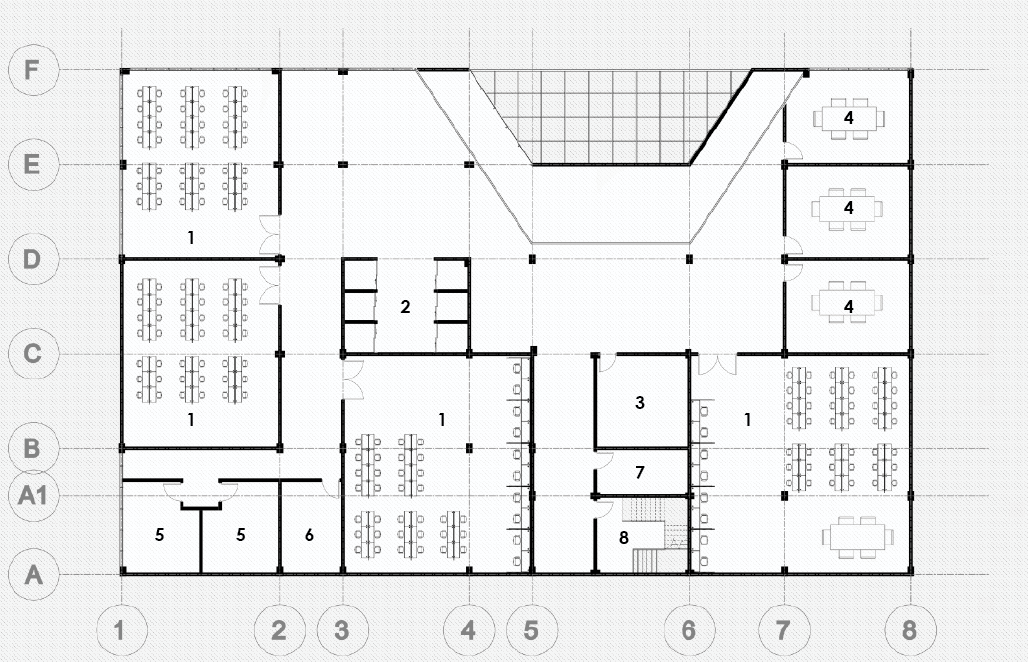

1. Office
2. Lift Lobby
3. Pantry
4. Meeting rooms
5. Washrooms
6. Storage
7. Cleaning room
8. Fire Escape Staircase
2. Lift Lobby
3. Pantry
4. Meeting rooms
5. Washrooms
6. Storage
7. Cleaning room
8. Fire Escape Staircase
